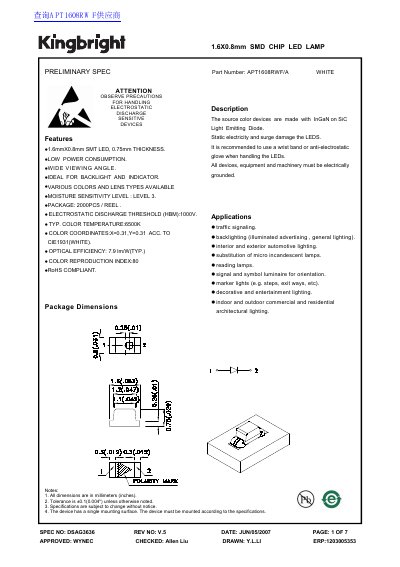

This document describes the package dimensions, features, and characteristics of a 1.6mmX0.8mm SMT chip LED lamp, including low power consumption, wide viewing angle, and suitability for backlight and indicator applications. It also provides various color and lens options, and is RoHS compliant.
This document is a preliminary specification sheet for the Kingbright APT1608RWF/A, a 1.6x0.8mm SMD chip LED lamp. The device features a 0.75mm thickness and is designed for low power consumption with a wide viewing angle, making it ideal for backlighting and indicator applications. It is available in various colors and lens types, with this specific sheet covering the white version (InGaN on SiC).
| Dimensions | 1.6mm x 0.8mm |
|---|---|
| Thickness | 0.75mm |
| Moisture Sensitivity Level | Level 3 |
| Package Quantity | 2000pcs / Reel |
| ESD Threshold (HBM) | 1000V |
| Typ. Color Temperature | 6500K |
| Color Coordinates (Typ.) | X=0.31, Y=0.31 |
| Optical Efficiency (Typ.) | 7.9 lm/W |
| Color Reproduction Index | 80 |
| Power Dissipation | 120 mW |
| Reverse Voltage | 5 V |
| Junction Temperature | 110 °C |
| Operating Temperature | -40 To +85 °C |
| Storage Temperature | -40 To +100 °C |
| DC Forward Current | 30 mA |
| Peak Forward Current | 100 mA |
| Thermal Resistance (J-A) | 400 °C/W |
| Forward Voltage (Typ.) | 3.2 V |
| Forward Voltage (Min.) | 2.7 V |
| Forward Voltage (Max.) | 4.0 V |
| Reverse Current (Typ.) | 0.01 mA |
| Reverse Current (Max.) | 10 mA |
The recommended reflow temperature is 245°C (+/- 5°C).
Yes, the product is RoHS compliant.
The number of reflow processes shall be 2 times or less.
