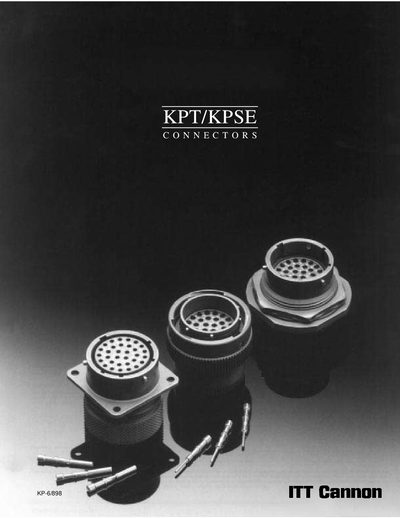

KPT/KPSE C O N N E C T O R S are miniature circular connectors manufactured according to MIL-C-26482 with three point bayonet coupling and five-keyway polarization. They offer general purpose solder connectors and high performance crimp connectors. The broad product range provides the most complete family of connectors conform to MIL- C-26482, NFC 93422 HE 301 model, VG 95328 and LN 29500 specifications. The versatility of these connectors has been proven by their usage in general as well as in high performance environmental applications. In addition to the basic series presented in this catalogue, connectors for special applications are available. They include corrosion resistant types, filter connectors for electromagnetic compatibility and non-outgasing, radiation resistant versions. All connectors conform to the above mentioned specifications.
This document introduces the ITT Cannon KPT and KPSE series of miniature circular connectors. The KPT series consists of general-purpose solder contact connectors approved for military and industrial applications with fixed contacts. The KPSE series features high-performance crimp contact connectors designed for environmental use, offering quick disconnect capabilities and closed-entry socket contacts to prevent damage from test probes.
| Operating Temperature | -55 / 125°C |
|---|---|
| Durability (Mating Cycles) | min. 500 mating cycles |
| Vibration Test | 200 m/s² at 10 to 2000 Hz |
| Water Tightness Test Pressure | 0.2 bar overpressure |
| Shell Material | Aluminum alloy |
They conform to MIL-C-26482, NFC 93422 HE 301 model, VG 95328 and LN 29500 specifications.
Yes, all connectors conforming to the mentioned specifications are fully intermateable and accept a wide range of interchangeable accessories.
