The document provides specifications and dimensions of ITT Cannon's B-36 series tactile switches, including actuation force and operating life. The B-36 series tactile switches are low-profile, protected against flux, RoHS compliant, and suitable for applications such as low-profile keyboards, instrumentation, industrial control, medical, and military.

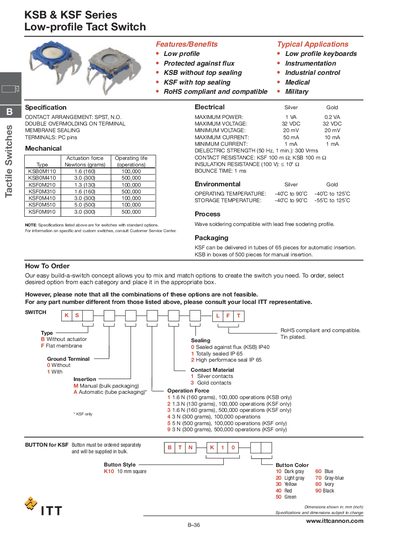

This document provides technical data for the KSB and KSF series of low-profile tactile switches manufactured by ITT. It highlights key benefits such as a low profile design, flux protection (for KSB), and top sealing (for KSF). The switches are RoHS compliant and compatible with military specifications.
| Maximum Power | 1VA (KSB), 0.2VA (KSF) |
|---|---|
| Maximum Voltage | 32 VDC |
| Minimum Voltage | 20 mv |
| Maximum Current (KSB) | 50 mA |
| Maximum Current (KSF) | 10 mA |
| Dielectric Strength | 300 Vrms |
| Bounce Time | 1 ms |
| Operating Temperature (KSB) | -40°C to 90°C |
Yes, the document states they are RoHS compliant and compatible.
The switches have a Single Pole Single Throw (SPST) Normally Open (N.O.) contact arrangement.
Yes, KSF can be delivered in tubes of 65 pieces for automatic insertion.
