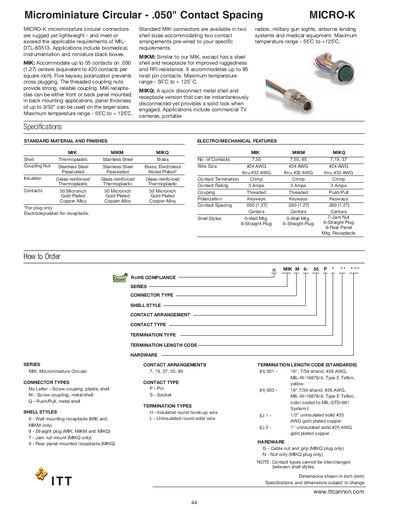

MICRO-K 44 microminiature circular connector with .050” contact spacing, suitable for biomedical, instrumentation and miniature black boxes applications.
This document details the ITT Cannon MICRO-K series of microminiature circular connectors. These rugged yet lightweight connectors meet or exceed MIL-DTL-83513 requirements and are designed for applications including biomedical devices, instrumentation, and miniature black boxes.
The MICRO-K family includes three main versions: MIK (thermoplastic shell), MIKM (stainless steel shell for improved ruggedness and RFI resistance), and MIKQ (quick disconnect metal shell). All variants accommodate up to 85 contacts on .050 inch centers, feature five keyway polarization to prevent cross-plugging, and utilize threaded or push/pull coupling nuts.
| Contact Spacing | .050 (1.27) |
|---|---|
| Maximum Temperature Range | - 55°C to + 128°C |
| Contact Rating | 3 Amps |
| Contact Termination | Crimp |
Applications include biomedical, instrumentation and miniature black boxes.
MIKM has a steel shell and receptacle for improved ruggedness and RFI resistance.
Five keyway polarization is used to prevent cross plugging.
