ITT Cannon 1.6/5.6 RF coaxial connectors are suitable for use in 75 ohm communication systems

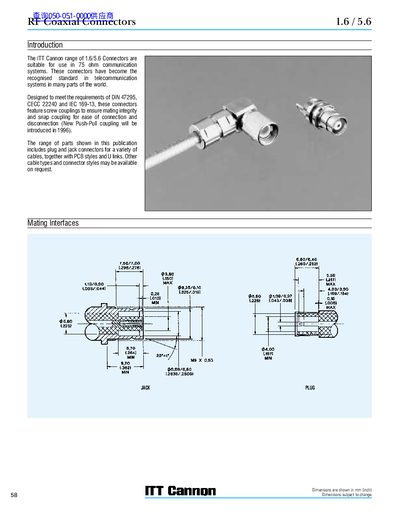

This document details the ITT Cannon range of 1.6/5.6 connectors, which are recognized standards in telecommunication systems designed to meet DIN 47295, CECC 22240, and IEC 169-13 requirements. The connectors feature screw couplings for mating integrity and snap coupling for ease of connection.
The publication covers a variety of parts including plug and jack connectors for different cables, as well as PCB styles and U links. It provides specifications for electrical performance, mechanical properties like withdrawal force, environmental ratings from -40°C to 85°C, and detailed dimensions for mounting plans.
| Impedance | 75 Ohm nominal |
|---|---|
| Frequency Range | 0-1 GHz |
| Voltage Rating | 330 Vrms at Sea Level |
| Insulation Resistance | 10 GOhm minimum |
| Contact Resistance (Inner) | 4 mOhm maximum |
| Temperature Rating | -40° C to 85° C |
They are designed to meet the requirements of DIN 47295, CECC 22240 and IEC 169-13.
The bodies and nuts are made of brass.
