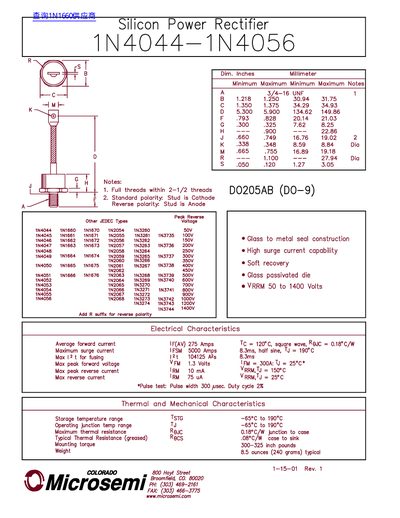

This document provides technical specifications for the Microsemi 1N4044 series of glass-to-metal seal power rectifiers. It covers a range of models from 1N4044 to 1N4056, with reverse voltage ratings spanning from 50V to 1200V.
| Average forward current IF(AV) | 275 Amps |
|---|---|
| Maximum surge current IFSM | 5000 Amps |
| Max peak forward voltage VFM | 1.3 Volts |
| Storage temperature range TsTG | -65°C to 190°C |
| Operating junction temp range TJ | -65°C to 190°C |
| Maximum thermal resistance RθJC | 0.18°C/W |
The typical weight is 8.5 ounces or 240 grams.
The required mounting torque is between 300 and 325 inch pounds.
