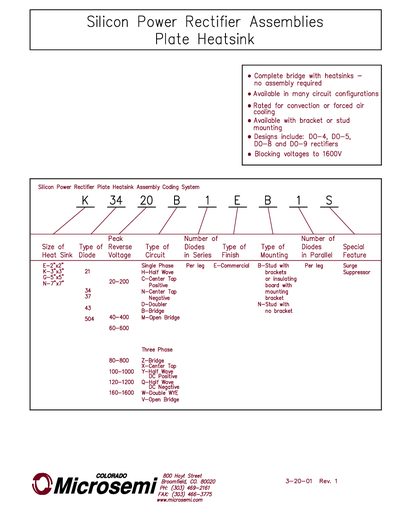

The document describes complete bridge rectifier assemblies featuring integrated plate heatsinks that require no additional assembly. These units are available in various circuit configurations including single-phase half-wave, center-tap, full-bridge, doubler, double-wye, and three-phase variants.
Technical specifications provided include blocking voltages up to 1600V and average circuit output currents ranging from 7.8A to over 396A depending on the series and cooling method (natural convection or forced air). The datasheet also lists physical dimensions for different heat sink sizes.
| Blocking Voltages | to 1600V |
|---|---|
| Cooling Method | convection or forced air cooling |
| Mounting Options | bracket or stud mounting |
No, they are complete bridge units that come with heatsinks and no assembly is required.
The assemblies are rated for both convection and forced air cooling.
