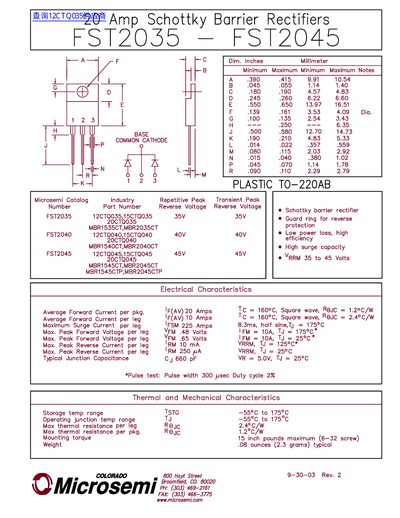

This document provides technical specifications for the Microsemi FST2035 and FST2045 series of Schottky barrier rectifiers. The devices are rated for a repetitive peak reverse voltage ranging from 35V to 45V and an average forward current per package of 20 Amps.
| Average Forward Current per pkg. | 20 Amps |
|---|---|
| Maximum Surge Current per leg | 225 Amps |
| Typical Junction Capacitance | 660 pF |
| Storage temp range | -55°C to 175°C |
| Operating junction temp range | -55°C to 175°C |
The maximum mounting torque is 15 inch pounds when using a 6-32 screw.
The typical peak forward voltage per leg is 0.48 Volts at 10 mA and 0.65 Volts at 250 uA.
