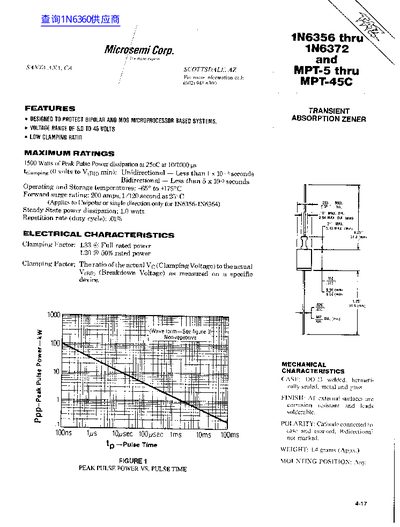

Microsemi 1N6356 thru 1N6372 MPT-5 thru MPT-45C

Brand: Microsemi
Category: Chips
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 90 KB
Published: 05 June, 2012
Updated: 05 June, 2012
MD5 checksum: A89A86EFA46B01FC54515C63FEA295B3
PDF: Microsemi 1N6356 thru 1N6372 MPT-5 thru MPT-45C PDF

About this manual

This document is a datasheet for the Microsemi 1N6356 through 1N6372 and MPT-5 through MPT-45C series of Transient Absorption Zener diodes. These components are designed to protect bipolar and MOS microprocessor-based systems with a voltage range of 5.0 to 45 volts.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Mechanical Characteristics

Specifications

Voltage Range	5.0 to 45 Volts
Peak Pulse Power Dissipation	1500 Watts
Operating Temperature Range	-65° to +175°C
Forward Surge Rating	200 amps, 1/120 second at 25°C
Steady State Power Dissipation	1.0 watt

Frequently asked questions

What systems are these zeners designed to protect?

They are designed to protect bipolar and MOS microprocessor based systems.

What is the clamping factor at full rated power?

The clamping factor is 1.33 @ Full rated power.

How are bidirectional types identified in the part list?

Bidirectional types are indicated by a 'C' suffix (e.g., MPT-5C).
