1N4099UR-1 series is a diode from Microsemi. This series of products has low current operation, metallurgy bonding, surface mount and other characteristics.

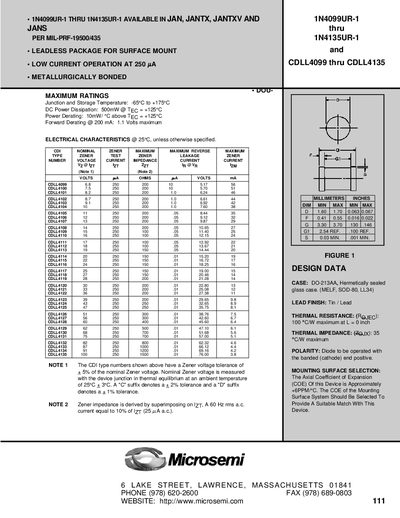

This document provides technical data for the Microsemi 1N4099UR-1 through 1N4135UR-1 series of zener diodes. The devices are available in JAN, JANTX, JANTXV, and PER MIL-PRF-19500/435 grades within a leadless package designed for surface mount applications.
Key specifications include a junction and storage temperature range of -65°C to +175°C and a maximum DC power dissipation of 500mW at TEG = +125°C. The datasheet details electrical characteristics such as zener voltage, test current, impedance, leakage current, and forward current for various models ranging from CDLL4099 (6V) to CDLL4135 (100V).
| Junction and Storage Temperature | -65°C to +175°C |
|---|---|
| DC Power Dissipation | 500mW @ TEG = +125°C |
| Power Derating | 10mW/ °C above TEG = +125°C |
| Forward Derating @ 200 mA | 1.1 Volts maximum |
| Package Type | Leadless Package for Surface Mount |
The junction and storage temperature ranges from -65°C to +175°C.
Yes, they are available in JAN, JANTX, JANTXV, and PER MIL-PRF-19500/435 grades.
The maximum DC power dissipation is 500mW at a temperature of +125°C.
