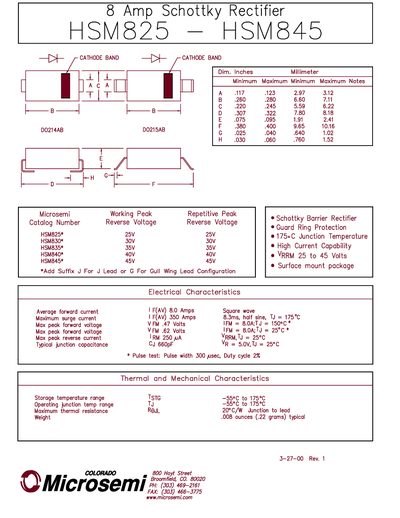

Microsemi HSM825/HSM845 Schottky Rectifier Datasheet

Brand: Microsemi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 100 KB
Published: 05 June, 2012
Updated: 05 June, 2012
MD5 checksum: 998B8EFA56A20F1C2AA94189A1CCE55E
PDF: Microsemi HSM825/HSM845 Schottky Rectifier Datasheet PDF

About this manual

This document provides technical specifications for the Microsemi HSM825 and HSM845 series of Schottky barrier rectifiers. The devices are designed for high current capability applications, featuring a maximum average forward current of 8.0 Amps and a maximum surge current of 350 Amps.

What's inside

Electrical Characteristics
Thermal and Mechanical Characteristics
Typical Forward Characteristic
Typical Reverse Current
Typical Junction Capacitance
Package Dimensions
Ordering Information

Specifications

Max peak forward voltage (HSM825)	.47 Volts
Max peak forward voltage (HSM845)	.62 Volts
Typical junction capacitance	660pF
Operating junction temp range	-55°C to 175°C

Frequently asked questions

What are the typical junction capacitance values?

The typical junction capacitance (CU) is 660pF.

What is the average forward current rating for this rectifier?

The device has an average forward current of 8.0 Amps.

What are the maximum operating junction temperatures?

The storage and operating junction temperature ranges from -55°C to 175°C.

What is the typical weight of this component?

The typical weight is .008 ounces or .22 grams.
