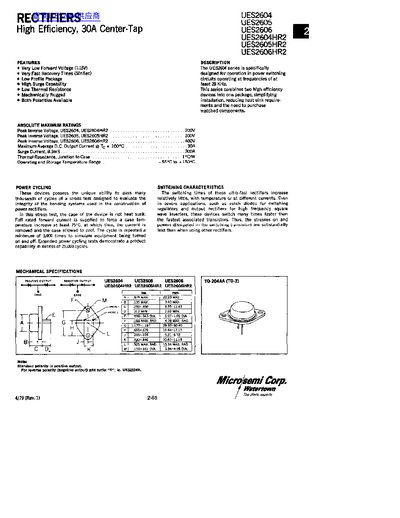

The document describes the UES2604 series as ultra-fast rectifiers designed specifically for power switching circuits operating at frequencies of at least 20 KHz. These devices combine two high-efficiency components into one package to simplify installation and reduce heat sink requirements.
Key features include very low forward voltage (1.15V), very fast recovery times, and a low profile package. The datasheet provides absolute maximum ratings, switching characteristics, electrical specifications per leg, mechanical dimensions for various models including the HR2 high reliability version, and information on optional screening tests.
| Forward Voltage | 1.15V |
|---|---|
| Recovery Time | S0nSec |
| Operating Frequency | at least 20 KHz |
| Maximum Average D.C. Output Current | @ Te = 100°C |
The UES2604 series is designed for operation in power switching circuits operating at frequencies of at least 20 KHz.
For reverse polarity (negative output), you must add the suffix 'R' to the model number, such as UES2604R.
