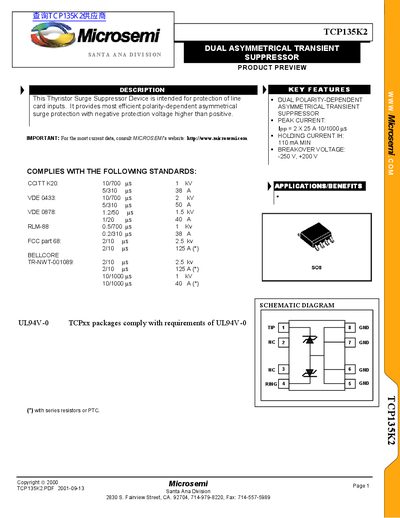

Microsemi TCP135K2 Dual Asymmetrical Transient Suppressor Datasheet

TCP135K2 Dual Asymmetrical Transient Suppressor Product Preview

Brand: Microsemi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 211 KB
Published: 06 June, 2012
Updated: 01 October, 2023
MD5 checksum: A7766E43BB2A63A83FD056AED74D6C3F
PDF: Microsemi TCP135K2 Dual Asymmetrical Transient Suppressor Datasheet PDF

About this manual

The Microsemi TCP135K2 is a Thyristor Surge Suppressor Device designed to provide efficient polarity-dependent asymmetrical surge protection. It features negative protection voltage higher than positive and includes specific peak current ratings of 2 x 25 A (10/1000 µs). The device complies with various international standards including CCITT K20, VDE 0433, and UL94V-0.

What's inside

Description
Absolute Limiting Values
Electrical Characteristics
Impulse Breakdown Voltage Characteristic Values
Schematic Diagram

Specifications

Peak Current (Ipp)	2 x 25 A (10/1000 µs)
Breakover Voltage	-250 V, +200 V
Junction Temperature Range (Tj)	-40 to +150 °C
Storage Temperature Range (Tstg)	-40 to +150 °C

Frequently asked questions

Is the TCP135K2 suitable for line card inputs?

Yes, this device is intended for protection of line card inputs.

What are the peak current ratings for this suppressor?

The device has a peak current rating of 2 x 25 A at 10/1000 ps.

What are the breakover voltage ratings for this device?

The breakover voltage is -250 V and +200 V.
