1N6626 is a Siliconix Schottky diode with fast recovery time and low power consumption. It is suitable for various switch power supply and inverter circuits.

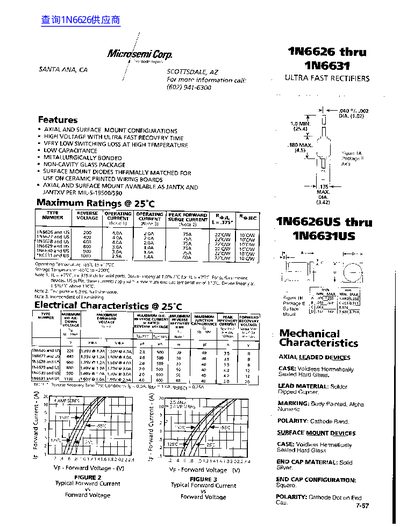

This document provides technical data for the Microsemi 1N6626 through 1N6631 series of ultra-fast recovery rectifiers. The devices are available in both axial leaded and surface mount configurations (US suffix) within a non-cavity glass package.
Key features include low capacitance, high voltage ratings ranging from 200V to 1000V, and very low switching loss at high temperatures. The diodes are thermally matched for use on ceramic printed wiring boards and operate in an axial or surface mount configuration.
| Operating Temperature Range | -65°C to +175°C |
|---|---|
| Storage Temperature Range | -65°C to +200°C |
| Package Type | Non-Cavity Glass Package |
| Configuration Options | Axial and Surface Mount |
The peak reverse voltage for the 1N6631 model is 1000V.
The devices operate from -65°C to +175°C.
The peak reverse voltage is 1000 V.
