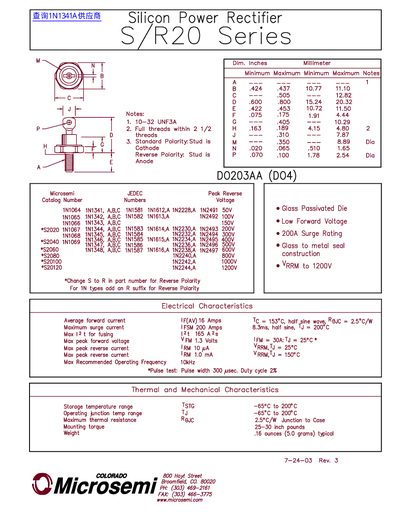

This document provides technical specifications for the Microsemi S/R20 Series silicon power rectifiers. It includes dimensional drawings with inch and millimeter measurements, a list of catalog numbers corresponding to different voltage ratings from 50V to 1200V, and notes on polarity configurations.
The datasheet details electrical characteristics such as average forward current (IF(AV)) up to 16 Amps and maximum surge current (IFSM) of 200 Amps. It also covers thermal properties including storage temperature ranges from -65°C to 200°C, junction-to-case thermal resistance, and mounting torque requirements.
| Average forward current IF(AV) | 16 Amps |
|---|---|
| Maximum surge current IFSM | 200 Amps |
| Max peak forward voltage VFM | 1.3 Volts |
| Storage temperature range | -65°C to 200°C |
| Maximum thermal resistance RthJC | 2.5°C/W |
The maximum surge current (IFSM) is rated at 200 Amps for an 8.3ms half-sine wave.
The maximum recommended operating frequency for this rectifier series is 10kHz.
