M16C/62A is a single-chip microcontroller produced by Mitsubishi, based on the M16C/60 series CPU core, and packaged in a 80-pin plastic package. It has 1M bytes of address space and can execute instructions at high speed.
This document describes the M16C/62A Group of single-chip microcomputers from Mitsubishi Electric. These devices utilize a high-performance silicon gate CMOS process based on the M16C/60 Series CPU core and are packaged in an 80-pin plastic molded QFP.

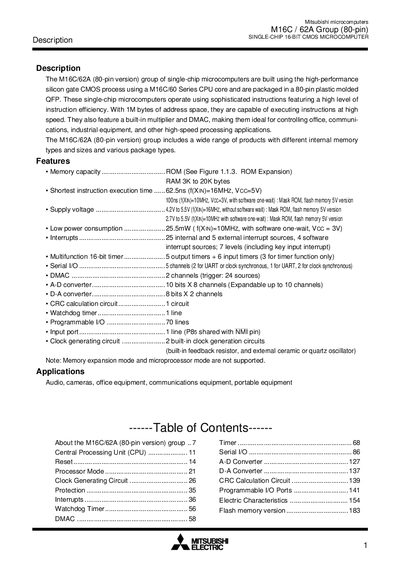

The datasheet outlines key features including up to 91 basic instructions, execution times as short as 62.5ns at 16MHz, and a built-in multiplier and DMAC. It details the internal block diagram, pin configurations, performance specifications such as supply voltage ranges (4.2V to 5.5V), power consumption, and interrupt capabilities.
| Number of basic instructions | 91 instructions |
|---|---|
| Shortest instruction execution time | 62.5ns (f(XIN)=16MHz, Vcc=5V) |
| RAM capacity | 3K to 20K bytes |
| Supply voltage (Mask ROM/Flash) | 4.2V to 5.5V (f(XIN)=16MHz, without software wait) |
| Power consumption | 25.5mW (f(XIN) = 10MHz, Vcc=3V with software one-wait) |
| Interrupt sources | 25 internal and 5 external sources, 4 software sources, 7 levels |
No, this group does not support memory expansion mode or microprocessor mode.
They are ideal for controlling office, communications, industrial equipment, audio, cameras, portable equipment, and other high-speed processing applications.
