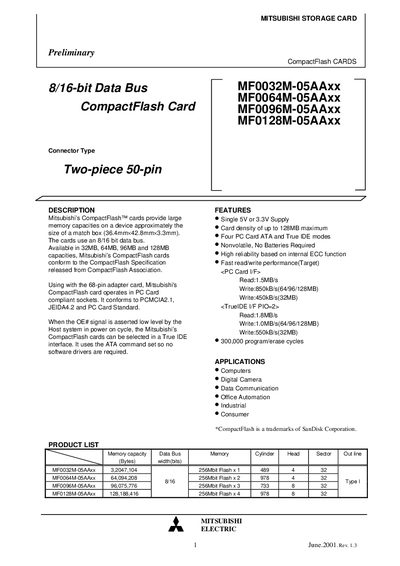

MITSUBISHI STORAGE CARD MF0032M-05AAxx MF0064M-05AAxx MF0096M-05AAxx MF0128M-05AAxx Data sheet

Introduces the features and characteristics of Mitsubishi Electric's CompactFlash cards

Brand: Mitsubishi
Category: Storage devices
Document type: Datasheet
Language: English
Pages: 32
File format: PDF
File size: 589 KB
Published: 05 June, 2012
Updated: 01 October, 2023
MD5 checksum: A80B5D1EA0DF7C9E7CEE5A0A4418CBE7
PDF: MITSUBISHI STORAGE CARD MF0032M-05AAxx MF0064M-05AAxx MF0096M-05AAxx MF0128M-05AAxx Data sheet PDF

About this manual

This document is a preliminary datasheet for the MFOXXXX-05AAXX series of Mitsubishi Electric CompactFlash cards. The product line includes four models with memory capacities ranging from 32MB to 128MB, utilizing 256Mbit Flash memory chips.

What's inside

Description
Features
Applications
Product List
Pin Assignment
Signal Description
Block Diagram
Function Table

Specifications

Memory Capacity	32MB, 64MB, 96MB, or 128MB maximum
Data Bus Width	8-bit or 16-bit
Supply Voltage	Single 5V or 3.3V
Dimensions	36.4mm x 42.8mm x 3.3mm
Connector Type	Two-piece 50-pin
True IDE I/F Write Speed (64/96/128MB)	1.0MB/s

Frequently asked questions

Do these CompactFlash cards require a battery?

No, the cards are nonvolatile and do not require batteries.

What is the physical outline size of the card?

The card measures 36.4mm x 42.8mm x 3.3mm.
