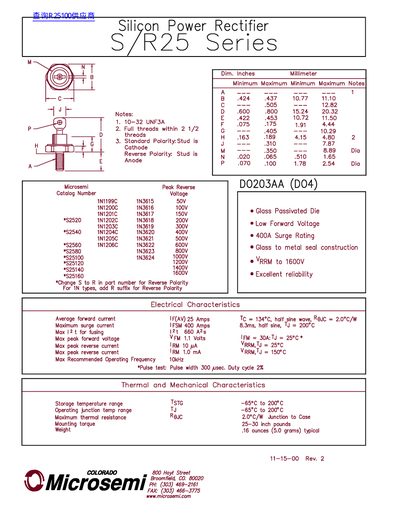

This document provides technical specifications for the Microsemi S/R25 series of power rectifiers. It details mechanical dimensions, available catalog numbers with voltage ratings, and key electrical parameters such as average forward current and maximum surge current.
The datasheet also includes graphical representations of forward and reverse characteristics, along with thermal derating curves and transient thermal impedance data to assist in circuit design and application.
| Average forward current IF(AV) | 25 Amps |
|---|---|
| Maximum surge current IFSM | 400 Amps |
| Max peak forward voltage VFM | 1.1 Volts |
The maximum recommended operating frequency is 10kHz.
The device supports an average forward current of 25 Amps.
You must apply a mounting torque between 25 and 30 inch pounds.
