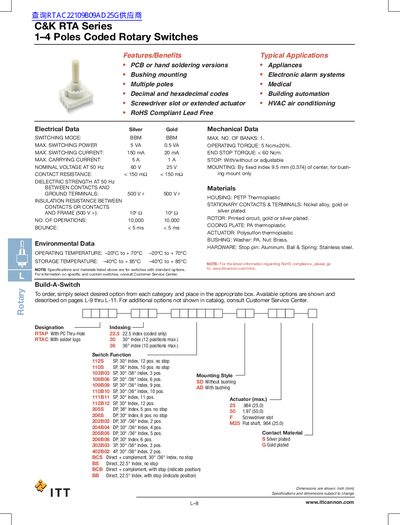

The product is C&K RTA series rotary coded switches, supports 1-4 poles, with PCB or hand soldering versions, with decimal and hexadecimal codes, optional with screwdriver slot or extended actuator, RoHS compliant, lead-free.
The C&K RTA Series consists of 1 to 4-pole coded rotary switches designed for applications such as appliances, electronic alarm systems, medical devices, building automation, and HVAC air conditioning. These switches are available in PCB or hand soldering versions with bushing mounting options and feature RoHS compliant lead-free construction.
| Max Switching Power (Silver) | 5 VA |
|---|---|
| Max Switching Current (Silver) | 150 mA |
| Max Carrying Current (Silver) | 5A |
| Nominal Voltage (Silver) | 60 V |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
Yes, the document states they are 'RoHS Compliant Lead Free'.
The maximum switching power is 5 VA.
The operating temperature ranges from -20°C to +70°C.
The maximum number of banks is one.
