This document introduces the features and characteristics of the EK-Multilayer Ceramic Capacitors( ) For General products, including the product's precautions, recommended applications, packaging methods, construction, dimensions, model numbers, temperature characteristics, rated voltage, rated capacitance, capacitance tolerance and so on.

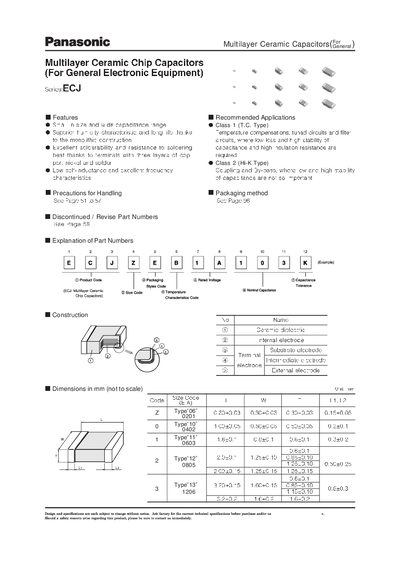

This document provides a comprehensive overview of the Panasonic ECJ series Multilayer Ceramic Chip Capacitors designed for general electronic equipment. It details key features such as small size, wide capacitance range, superior humidity characteristics, and excellent solderability due to three-layer terminal construction.
The datasheet includes detailed specifications for Class 1 (T.C. Type) and Class 2 (Hi-K Type) capacitors, covering operating temperatures, dielectric strength, insulation resistance, Q factor, and dissipation factors. It also outlines various packaging styles, temperature characteristics codes, rated voltages, and standard test methods including vibration, solderability, and damp heat tests.
| Solderability Requirement | More than 95 % coverage |
|---|
They are used in temperature compensation, tuned circuits, and filter circuits where low loss and high stability are required.
They are suitable for coupling and bypass applications where low and high stability of capacitance are not so important.
