This datasheet provides parameter information of FC series capacitors, including product model, rated working voltage, rated working temperature, rated capacity, tolerance, volume, weight, life, DC leakage current, dissipation factor, etc.

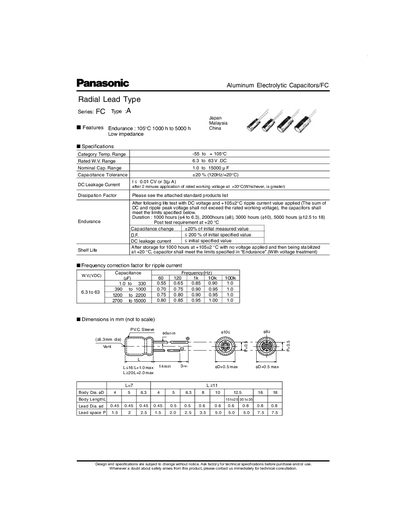

This document provides technical data for the Panasonic FC Type-A series of radial lead type aluminum electrolytic capacitors. It details key features such as low impedance and high endurance ratings up to 105°C with durations ranging from 1000 to 5000 hours.
The datasheet includes comprehensive specifications covering temperature ranges, working voltage limits, capacitance tolerances, and DC leakage current requirements. Additionally, it provides a detailed table of standard products with specific case sizes, capacitance values, impedance data at various frequencies, ripple current ratings, and corresponding part numbers for packaging.
| Category Temp. Range | -5 to +105°C |
|---|---|
| Rated W.V. Range | 6.3 to 63V.DC |
| Nominal Cap. Range | 1.0 to 15000 pF |
| Capacitance Tolerance | +20 % (120Hz/420°C) |
| Endurance Duration | 1000 h to 5000 h |
The capacitance tolerance is +20% at 120Hz and 420°C.
After the life test, the capacitor's capacitance change must be within +20% of the initial measured value.
The DC leakage current must be less than or equal to 0.01 CV or 3µA, whichever is greater.
