EE14 is a high quality polymer aluminum electrolytic capacitor designed for applications sensitive to ESR and noise. It features a very low ESR and excellent noise absorption characteristics.

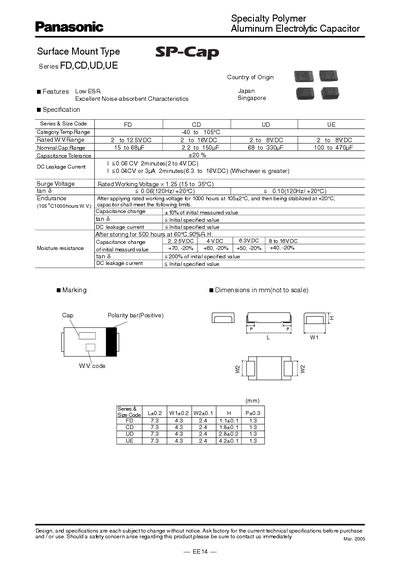

This document provides technical specifications and standard product listings for the Panasonic Specialty Polymer Aluminum Electrolytic Capacitor, specifically the Surface Mount Type Series FD, CD, UD, and UE. The series is designed with low ESR and excellent noise-absorbent characteristics.
The datasheet details electrical parameters including capacitance tolerance, rated working voltage ranges, temperature ratings from -40 to 105°C, and endurance tests. It also lists specific part numbers, dimensions in millimeters, and minimum packaging quantities for various case sizes.
| Capacitance Tolerance | +20 % |
|---|---|
| Temperature Range | -40 to 105°C |
| Surge Voltage | Rated Working Voltage x 1.25 (15 to 35°C) |
The specified category temperature range is -40 to 105°C.
It must endure this condition for 1000 hours at 105+42°C.
