This document is the specification of LNW498CK4 and LNW898CK8, introducing the features and characteristics of the products, including maximum rated current, maximum rated voltage, light color, luminous flux, working temperature range, etc.

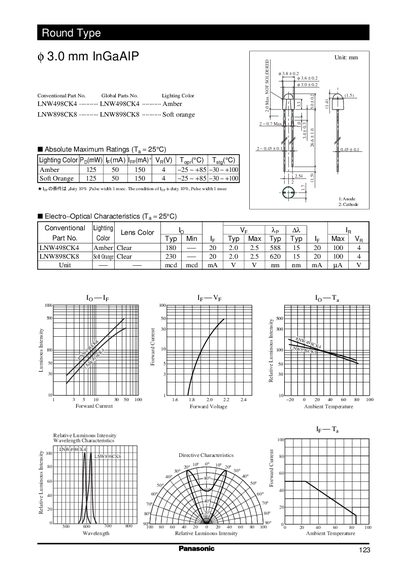

This document provides technical data for the Panasonic LNW498CK4 (Amber) and LNW898CK8 (Soft Orange) round type InGaAlP LEDs with a 3.0mm diameter. It includes conventional part numbers and global parts numbers, along with specific lighting color codes.
The datasheet details absolute maximum ratings such as forward current, reverse voltage, and operating temperature ranges for both colors. Additionally, it presents electro-optical characteristics including typical luminous intensity, viewing angle, and wavelength data under standard conditions of 25°C.
| Diameter | 3.0 mm |
|---|
The maximum forward voltage is 4 V.
