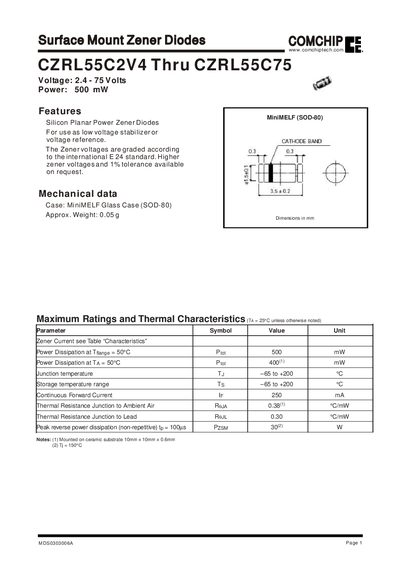

The document introduces the features and characteristics of Comchip CZRL55C2V4 Thru C75 Zener Diodes. The product is a silicon planar power zener diode used as a low voltage stabilizer or voltage reference. The Zener voltage is graded according to the international E 24 standard and higher zener voltages and 1% tolerance are available on request.
This document is a technical datasheet for the COMCHIP CZRL55 series of silicon planar power zener diodes. These components are designed in a MiniMELF (SOD-80) glass case and function as low voltage stabilizers or voltage references, graded according to the international E 24 standard.
| Power Dissipation (Ta=50°C) | 500 mW |
|---|---|
| Zener Voltage Range | 2.4 - 75 Volts |
| Case Type | MiniMELF Glass Case (SOD-80) |
| Junction Temperature Range | -65 to +200 °C |
| Continuous Forward Current | 250 mA |
The maximum power dissipation is 500 mW when the ambient temperature (Ta) is 50°C.
They are packaged in a MiniMELF glass case, which corresponds to the SOD-80 format.
