UPB1513TU is a silicon germanium (SiGe) monolithic integrated circuit designed as a divide by 4 prescaler IC for satellite communications.

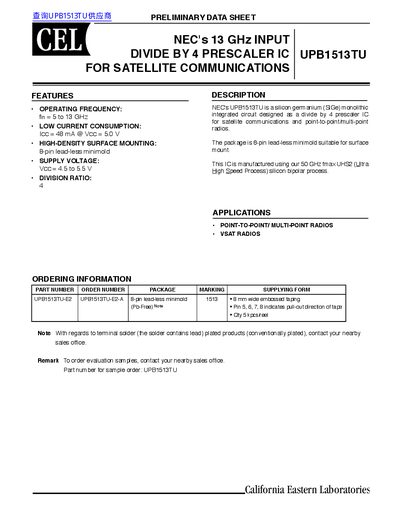

The document describes the CEL UPB1513TU, an NEC's 13 GHz input divide by 4 prescaler IC manufactured using a 50 GHz fmax UHS2 silicon bipolar process. It is designed as a monolithic integrated circuit for satellite communications and point-to-point/multi-point radios.
| Operating Frequency | 5 to 13 GHz |
|---|---|
| Current Consumption | 48 mA @ 5.0 V |
| Supply Voltage | 4.5 to 5.5 V |
| Division Ratio | 4 |
| Package Type | 8-pin lead-less minimold |
The device operates with an input frequency from 5 to 13 GHz.
The circuit draws 48 mA when supplied with 5.0 V.
