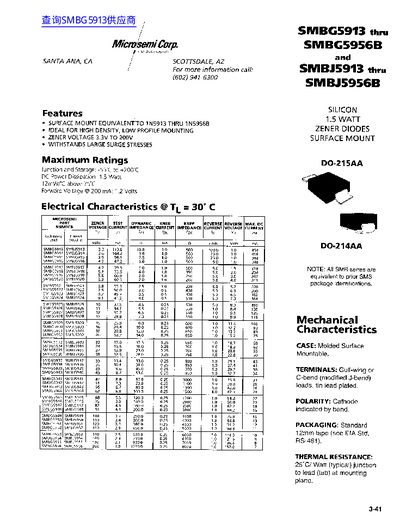

This document is a datasheet for the Microsemi SMBG5913 silicon zener diode. It specifies that the device is a surface-mount equivalent to the 1N5913 through 1N5956B series, designed for high-density and low-profile mounting applications with zener voltages ranging from 3.3V to 200V.
| Zener Voltage Range | 3.3V to 200V |
|---|---|
| Maximum Power Dissipation | 1.5 Watt |
| Operating Temperature Range | -55°C to +200°C |
| Forward Voltage @ 200 mA | 1.2 Volts |
| Package Type | DO-215AA / DO-214AA |
The specific part number SMBG5913 corresponds to a 3.3V zener voltage.
Yes, it is a surface mount equivalent to the 1N5913 through 1N5956B series.
The typical junction-to-lead thermal resistance is 25°C/Watt.
