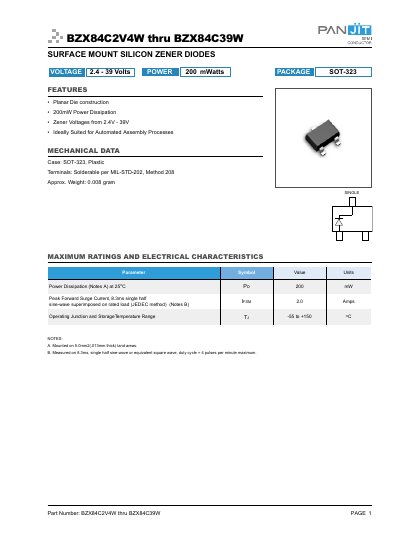

This document describes the features and characteristics of the BZX84C2V4W to BZX84C39W series surface mount silicon zener diodes, including planar die construction, power dissipation, zener voltage range, and suitability for automated assembly processes.
The document provides technical specifications for the BZX84C series of surface-mount silicon zener diodes manufactured by Panjit International Inc. These components feature planar die construction and are designed for automated assembly processes, operating within a junction temperature range of -55°C to +150°C.
| Power Dissipation | 200 mW |
|---|---|
| Zener Voltages Range | 2.4V - 39V |
| Package Type | SOT-323, Plastic |
| Operating Temperature Range | -55 to +150 °C |
The maximum power dissipation at 25°C is 200 mW.
The type numbers listed have a standard tolerance on the nominal zener voltage of +5%.
