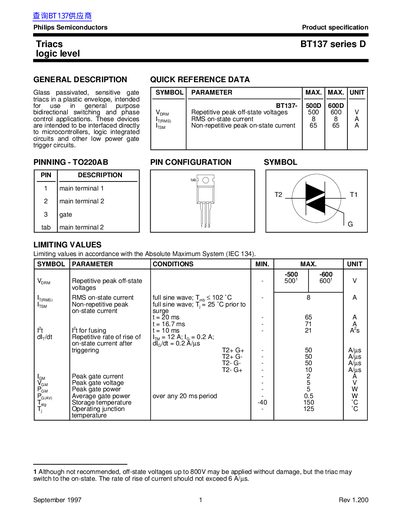

This document is about the product specification of BT137 series D logic level triacs from Philips Semiconductors. The product has characteristics such as glass passivated, sensitive gate and plastic envelope. It is mainly used for general purpose bidirectional switching and phase control applications.
This document provides product specifications for the BT137 series D triacs manufactured by Philips Semiconductors. These glass passivated devices are designed for general-purpose bidirectional switching and phase control applications, intended to be interfaced directly with microcontrollers and logic integrated circuits.
The datasheet includes quick reference data for maximum ratings such as off-state voltages and on-state currents, along with detailed tables for static and dynamic characteristics. It also presents mechanical dimensions for the TO220AB package and defines the status of the specifications as final product specifications.
| Repetitive peak off-state voltages | 500 / 600 V |
|---|---|
| Non-repetitive peak on-state current | 65 A |
The maximum operating junction temperature is 125 °C.
The net mass of the triac is a maximum of 2 g.
