Si7900EDN is a new product from Vishay Siliconix. It is a dual N-channel 20V (D-S) MOSFET with an 1.8V rated voltage. It is packaged in a PowerPAK 1212-8 package and has low RthJC. It can be used for 1-2 lithium ion battery protection switch.

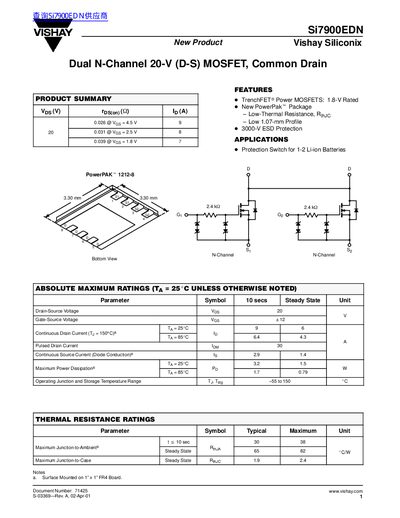

The document describes the Vishay Siliconix Si7900EDN, a new product featuring dual N-channel 20-volt (D-S) MOSFETs with a common drain configuration. The device utilizes TrenchFET Power MOSFET technology and is housed in a PowerPAK 1212-8 package.
Key features include a rated Vps of 1.8-V, low on-resistance values ranging from 0.026 to 0.039 ohms depending on gate voltage, and protection against up to 3000-V ESD. The component is designed for applications such as power switches for 1-2 Li-ion batteries.
| Drain-Source Voltage (Vps) | 20 V |
|---|---|
| Operating Junction Temperature Range | -55 to 150 °C |
| Package Type | PowerPAK 1212-8 |
It is designed as a protection switch for 1-2 Li-ion batteries.
Yes, the device offers up to 3000-V ESD protection.
