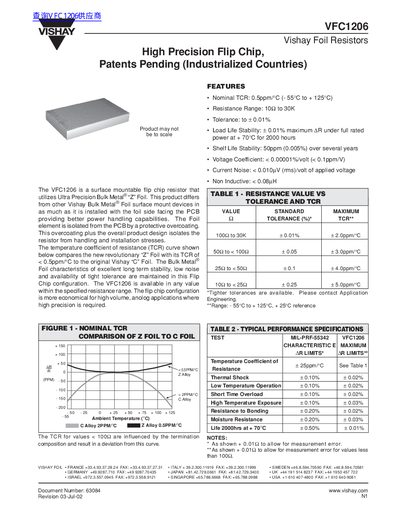

VFC1206 is a thin film resistor produced by Vishay. It features 0.5ppm/°C nominal TCR (-55°C to +125°C), 10 ohm to 30K resistance range, and ±0.01% tolerance.
The VFC1206 is a high-precision, surface-mountable flip chip resistor manufactured by Vishay. It utilizes Ultra Precision Bulk Metal Z Foil and is designed with the foil side facing the PCB to provide superior power handling capabilities compared to standard configurations. The device features a protective overcoating that isolates the resistor from mechanical stresses during installation.
| Nominal TCR | < 0.5ppm/°C (- 55°C to + 125°C) |
|---|---|
| Resistance Range | 102 to 30K |
| Tolerance | + 0.01% |
| Load Life Stability | + 0.01% maximum AR under full rated power at + 70°C for 2000 hours |
| Shelf Life Stability | 50ppm (0.005%) over several years |
| Voltage Coefficient | < 0.00001%/volt (< 0.1ppm/V) |
| Current Noise | < 0.010V (rms)/volt of applied voltage |
| Non Inductive | < 0.08uH |
The available resistance range is from 10 ohms to 30 kilo-ohms.
The nominal TCR is 0.5ppm/°C within a range of -55°C to +125°C.
