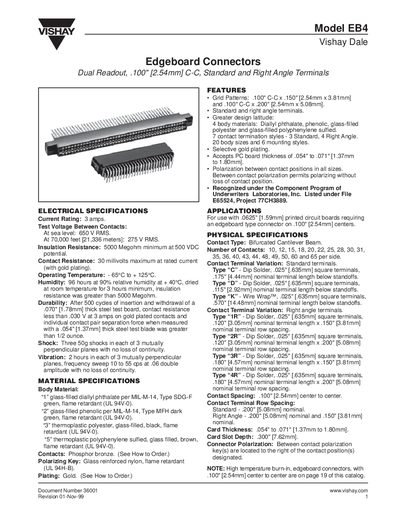

This document is a description of the Vishay EB4 connector, which introduces the characteristics, specifications, dimensions and other information of the connector.
This document provides electrical and physical specifications for the Vishay Dale Model EB4 Edgeboard Connectors. These connectors feature a .100" [2.54mm] center-to-center spacing and are designed for use with printed circuit boards requiring an edgeboard type connector.
The datasheet details various configurations including standard and right-angle terminals, bifurcated cantilever beam contact types, and multiple body materials such as diallyl phthalate and phenolic. It also outlines specific mounting variations like raised flange, flush mounting, and threaded inserts, along with ordering information.
| Current Rating | 3 amps. |
|---|---|
| Test Voltage (Sea Level) | 650 V RMS |
| Insulation Resistance | 5000 Megohm minimum |
| Contact Resistance | 30 millivolts maximum |
| Operating Temperature Range | -65°C to +125°C |
| Contact Spacing | .100" [2.54mm] |
The connector has a current rating of 3 amps.
Yes, it is rated for 275 V RMS at an altitude of 70,000 feet.
The insulation resistance must be at least 5000 Megohm.
