This datasheet introduces DFL15005S to DFL1514S low power bridge rectifiers, these rectifiers have low power, high surge current, small size and UL certification features.

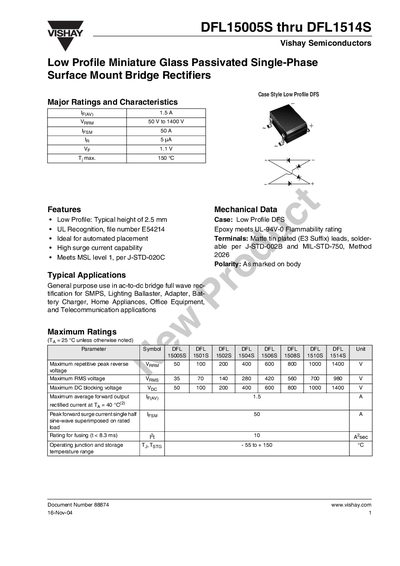

This document provides technical specifications and characteristics for the Vishay DFL series of low profile miniature glass passivated single-phase surface mount bridge rectifiers. The components are designed in a Low Profile DFS case style with typical heights of 2.5 mm and feature matte tin plated leads suitable for automated placement.
| Case Style | Low Profile DFS |
|---|---|
| Typical Height | 2.5 mm |
| Maximum Average Forward Output Rectified Current | 15 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Maximum Repetitive Peak Reverse Voltage (DFL1514S) | 1400 V |
| Maximum RMS Voltage (DFL1514S) | 980 V |
| Peak Forward Surge Current (Single Half Sine-Wave) | 50 A |
The maximum operating junction temperature is 150 °C.
The units must be mounted on pads measuring 0.51 x 0.51 inches (13 x 13 mm).
The maximum average forward output current is 15 A at a case temperature of 40 °C.
