PRV6, PARV6 are sealed potentiometers produced by Vishay Sfernice. Features of the product include 1.5 watt rated power, CECC 41300 certification, low cost, high stability, and 50,000 times use life.

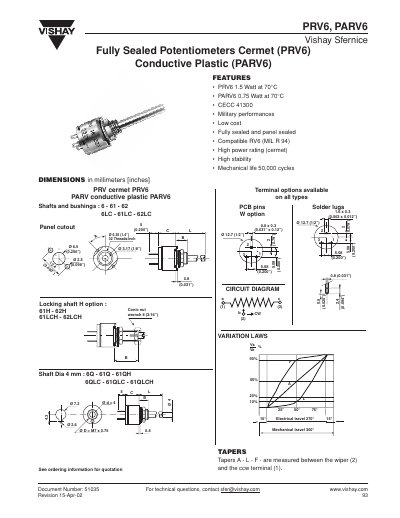

This document provides technical data for the PRV6 (cermet) and PARV6 (conductive plastic) series of fully sealed potentiometers manufactured by Vishay Sfernice. The datasheet details features such as high power ratings, low cost, and compatibility with military standards like MIL-R-94.
| Resistive Element Material (PRV6) | cermet |
|---|---|
| Resistive Element Material (PARV6) | conductive plastic |
| Electrical Travel | 270° ± 15° |
| Mechanical Life | 50,000 cycles |
| Power Rating (PRV6) | 1.5 Watt at 70°C |
| Power Rating (PARV6) | 0.75 Watt at 70°C |
| Operating Temperature Range | -55°C to +125°C |
The electrical travel for both series is 270° ± 15°.
The mechanical life is rated at 50,000 cycles.
