CS201 is a single-in-line capacitor network produced by Vishay Dale. It provides X7R and COG capacitors, has multiple isolated capacitors, multiple capacitors, common ground, custom design capability, lead (Pb) lead-free version is RoHS compliant.

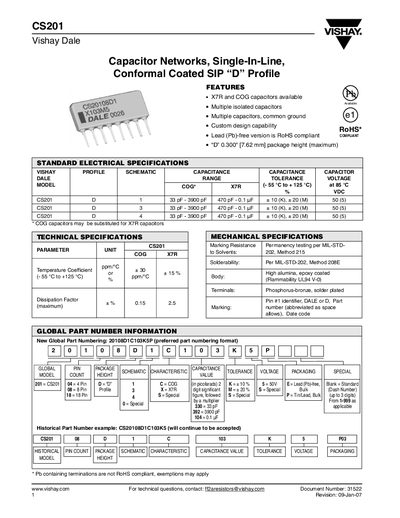

This document describes the Vishay Dale CS201, a series of single-in-line (SIP) capacitor networks with a 'D' profile. The components are available in both X7R and COG ceramic technologies and feature conformal coating for environmental protection.
The datasheet provides standard electrical specifications including capacitance ranges from 33 pF to 0.1 uF, voltage ratings up to 50V, and tolerance options of +10% (K) or +20% (M). It also details mechanical dimensions for pin counts ranging from 4 to 18 pins.
| Dielectric Types | X7R and COG capacitors available |
|---|---|
| Package Height | 0.300" [7.62 mm] maximum |
The maximum package height for the 'D' profile is 0.300 inches or 7.62 millimeters.
