This document introduces the features and characteristics of Vishay Dale Edgeboard Connectors

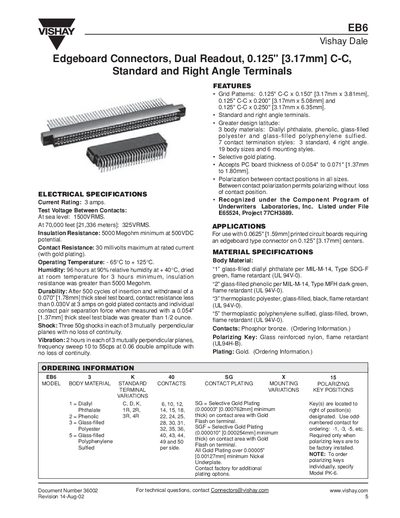

This document provides technical specifications for the Vishay Dale EB6 series of edgeboard connectors. These components feature a 0.125-inch center-to-center spacing and are available with either standard or right-angle terminals to accommodate various printed circuit board thicknesses.
The datasheet details electrical ratings, including a current rating of 3 amps and insulation resistance specifications under different atmospheric conditions. It also outlines physical characteristics such as body materials (including glass-filled polyester and phenolic), contact plating options like selective gold, and various mounting variations ranging from flush to threaded inserts.
| Current Rating | 3 amps |
|---|---|
| Contact Spacing | 0.125" C-C |
| Operating Temperature | -65°C to +125°C |
| Insulation Resistance | 5000 Megohm minimum at 500VDC |
| Contact Material | Phosphor bronze |
The current rating for the EB6 connector is 3 amps.
Available body materials include diallyl phthalate, phenolic, glass-filled polyester, and glass-filled polyphenylene sulfide.
The connector accepts PC board thicknesses starting from 0.054 inches.
