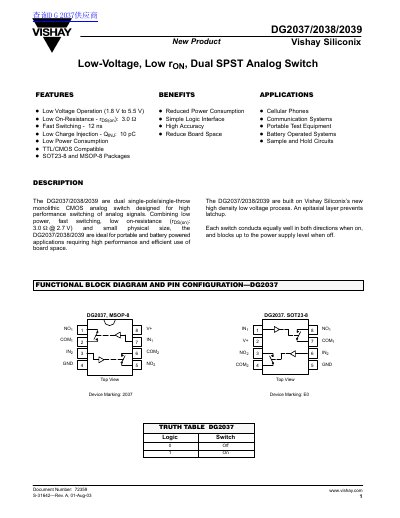

The DG2037/2038/2039 are dual single-pole/single-throw monolithic CMOS analog switches designed for high performance switching of analog signals. Combining low power, fast switching, low on-resistance (rDS(on): 3.0 m@ 2.7 V) and small physical size, the DG2037/2038/2039 are ideal for portable and battery powered applications requiring high performance and efficient use of board space.
The document describes the DG2037/2038/2039 as dual single-pole/single-throw monolithic CMOS analog switches designed for high-performance switching of analog signals. These devices are built on a new high-density low-voltage process and feature an epitaxial layer to prevent latchup, allowing them to conduct equally well in both directions when on.
| Supply Voltage Range (V+) | 1.8 V to 5.5 V |
|---|---|
| Switching Time (tON/tOFF) | 12 ns |
| Charge Injection (QINJ) | 10 pC |
| Operating Temperature Range | -40 to 85 °C (DS suffix) |
| Package Types | SOT23-8 and MSOP-8 |
These switches are suitable for cellular phones, communication systems, portable test equipment, and battery-operated systems.
Yes, the devices are specified as being TTL/CMOS compatible.
The absolute maximum continuous current for any terminal is 50 mA.
