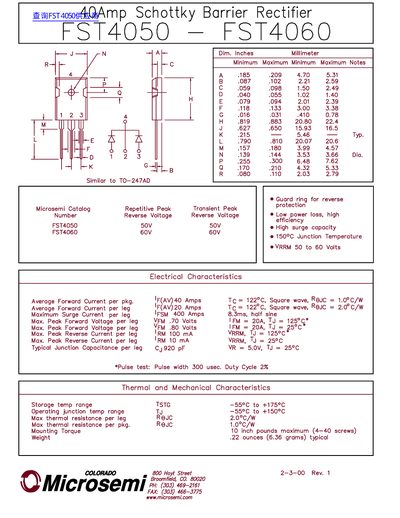

This document is a technical datasheet for the Microsemi FSI4050 and FSI4060 Schottky Barrier Rectifiers. It provides comprehensive data on device dimensions, electrical characteristics such as forward current and reverse voltage ratings, and typical performance curves including forward and reverse characteristics.
| Device Type | Schottky Barrier Rectifier |
|---|---|
| Models Covered | FSI4050 — FSI4060 |
| Average Forward Current per pkg. | 40 Amps |
| Maximum Surge Current per leg | 400 Amps |
| Max. Peak Forward Voltage per leg | .70 Volts |
| Typical Junction Capacitance per leg | 20 pF |
| Operating junction temp range | -55°C to +150°C |
The device can be stored between -55°C and +175°C.
A single package typically weighs 2.2 ounces (6.36 grams).
The maximum mounting torque is 10 inch pounds for four #4-40 screws.
