TZX2V4 - TZX36C is a surface mount Planar Die Zener diode with a power dissipation of 500mW. It has general purpose, medium current characteristics.

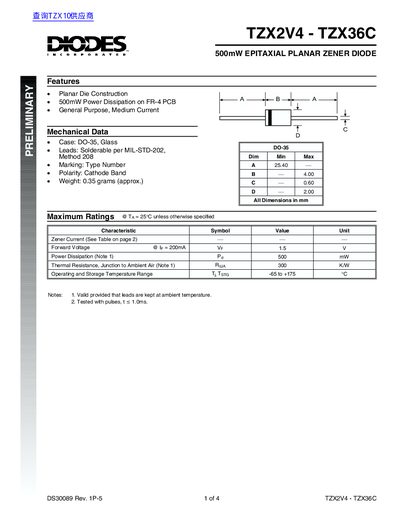

This document provides preliminary technical specifications for the TZX2V4 to TZX36C series of 500mW epitaxial planar zener diodes. The components feature a general-purpose design suitable for medium current applications with a power dissipation rating of 500mW on FR-4 PCBs.
The datasheet details the electrical characteristics, including Zener voltage ranges and test currents for various models within the series. It also specifies mechanical data such as the DO-35 glass case construction and lead solderability standards.
| Power Dissipation | 500mW on FR-4 PCB |
|---|---|
| Case Type | DO-35, Glass |
| Operating Temperature Range | -65 to +175 °C |
| Thermal Resistance (Junction to Ambient) | 300 K/W |
The device supports a maximum power dissipation of 500 mW on an FR-4 PCB.
Each diode weighs approximately 0.35 grams, with a maximum of 0.60 grams.
The diodes can operate and be stored between -65°C and +175°C.
