DS21501 Rev. 10 - 2 1 of 3 SA5V0A - SA170A is a bidirectional diode with a maximum rated current of 500W and a rated voltage range of 5.0-170V. The maximum operating temperature is 175°C.

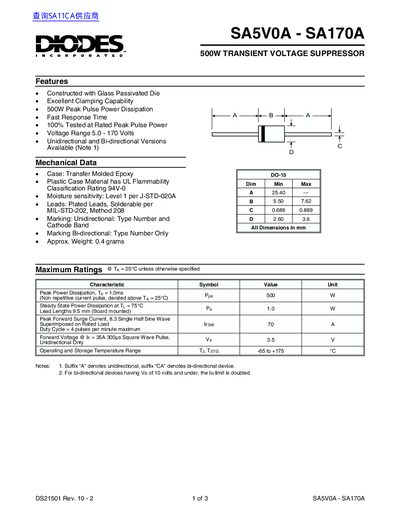

This document provides technical specifications for the SA5V0A through SA170A series of Transient Voltage Suppressors manufactured by Diodes Incorporated. The devices are constructed with glass passivated die and feature a peak pulse power dissipation of 500W.
The datasheet details electrical characteristics, including voltage ratings from 5.0V to 170V, forward surge current capabilities up to 70A, and operating temperature ranges from -65°C to +175°C. It also includes mechanical data for the DO-15 package and various derating curves for pulse power and ambient temperature.
| Peak Pulse Power Dissipation | 500W |
|---|---|
| Voltage Range | 5.0 - 170 Volts |
| Operating Temperature Range | -65 to +175 °C |
Suffix 'A' denotes a unidirectional device, while suffix 'CA' denotes a bi-directional device.
The specified lead length for board mounting is 9.5 mm.
