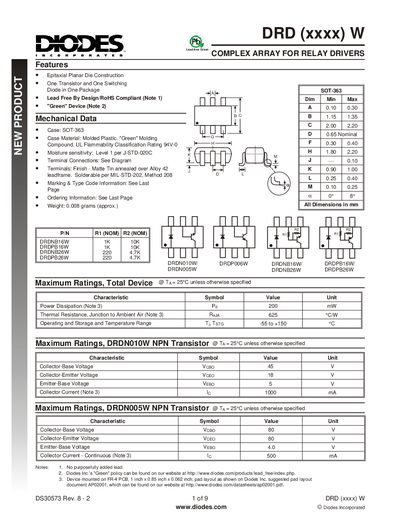

This document is a technical specification for DRD(xxxx) W COMPLEX ARRAY FOR RELAY DRIVERS. It introduces the product features and characteristics, including package type, pin definition, maximum ratings and application circuits.
The document describes the DRD (xxxx) W family of devices, which incorporate a complex array for relay drivers. The package features an epitaxial planar die construction with one transistor and one switching diode in a single SOT-363 lead-free package.
Technical specifications are provided for various models including NPN transistors (DRDNO10W, DRDNOOSW), PNP transistors (DRDPOOOW), pre-biased NPN (DRDNB16W, DRDNB26W), and pre-biased PNP (DRDPB16W, DRDPB26W) variants. The datasheet also details the specifications for the integrated switching diode.
| Package Type | SOT-363 |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
| Collector-Base Voltage (DRDNO10W) | 45 V |
The device uses a SOT-363 package.
Yes, it is designed as a lead-free device and is RoHS compliant.
