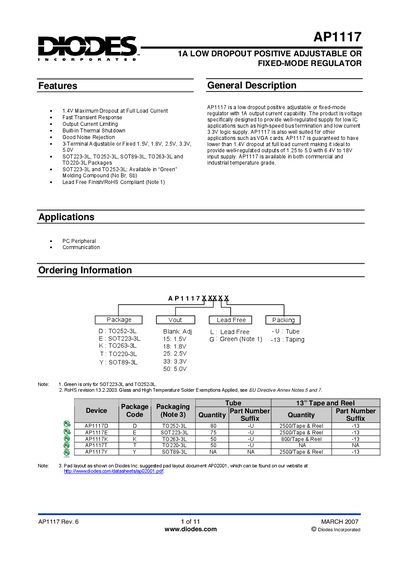

AP1117 is a low dropout positive adjustable or fixed-mode regulator with 1A output current capability.
The AP1117 is a low dropout positive adjustable or fixed-mode regulator with a 1A output current capability. It features fast transient response and built-in thermal shutdown protection. The device is designed to provide well-regulated supply for applications such as high-speed bus termination, VGA cards, and logic supplies.
| Output Current | 1A |
|---|---|
| Maximum Dropout Voltage | 1.4V |
The maximum dropout voltage is 1.4V at full load current.
Fixed modes include 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V.
