DDTA (R1-ONLY SERIES) E PNP PRE-BIASED SMALL SIGNAL SOT-523 SURFACE MOUNT TRANSISTOR is a Schottky Diode launched by Texas Instruments, with Epitaxial Planar Die Construction, Complementary NPN Types Available (DDTC), Built-In Biasing Resistor, R1 only features.

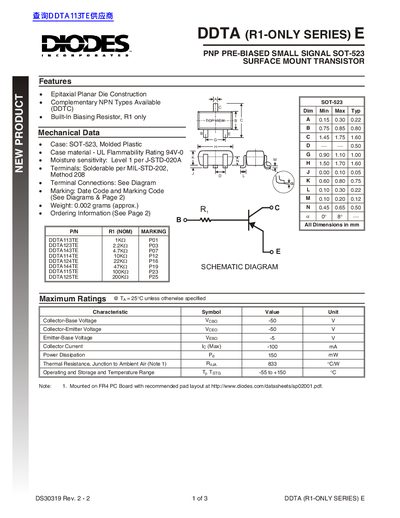

The document details the DDTA (R1-ONLY SERIES) E, a PNP pre-biased small signal transistor available in the SOT-523 molded plastic package. Key features include epitaxial planar die construction and a built-in biasing resistor (R1 only). The device is designed for surface mount applications with specific mechanical dimensions and terminal connections provided.
| Package Type | SOT-523, Molded Plastic |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
The device has a moisture sensitivity rating of Level 1 per J-STD-020A.
The approximate weight of the transistor is 0.002 grams.
