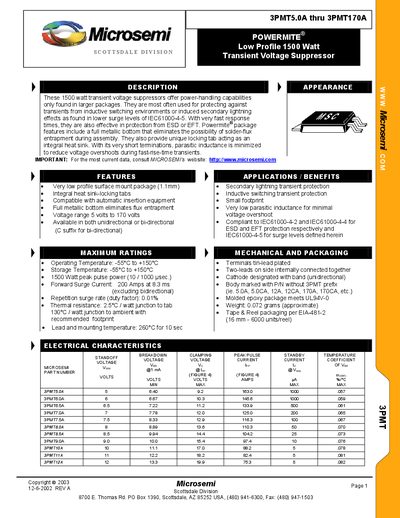

3PMT is a 1500-watt transient voltage suppressor from Microsemi with a very low profile, just 1.1mm thick. It can be used to protect circuits from inductive switching environments or induced secondary lightning effects.
The document describes the Powermite® series of 1500 Watt Transient Voltage Suppressors (TVS), designed to protect against transients from inductive switching environments and induced secondary lightning effects. These devices feature a very fast response time, making them effective for ESD or EFT protection as well.
| Peak Pulse Power | 1500 Watt (10 / 1000 Usec.) |
|---|---|
| Operating Temperature Range | -55°C to +150°C |
| Forward Surge Current | 200 Amps at 8.3 ms |
| Thermal Resistance (Junction to Tab) | 2.5°C / watt |
| Package Weight | 0.072 grams (approximate) |
The devices are rated for a 1500 Watt peak pulse power at 10/1000 microseconds.
The suppressors operate from -55°C to +150°C.
Each component weighs approximately 0.072 grams.
