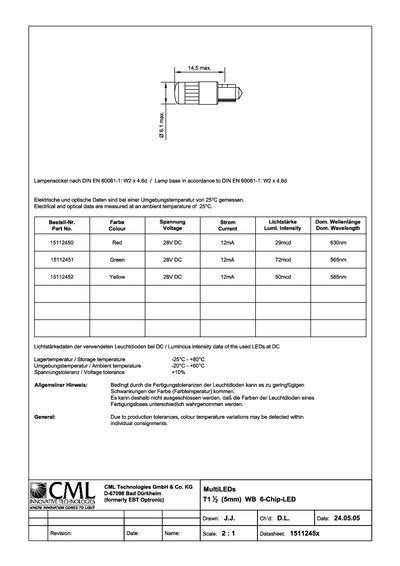

This document is a datasheet for the CML Technologies D-67098, a 5mm wide band (WB) 6-chip LED. The product is manufactured by CML Technologies GmbH & Co. KG in Bad Diirkheim.
The datasheet provides electrical and optical data measured at an ambient temperature of 25°C. It lists specific part numbers for Red, Green, and Yellow variants with their respective voltage, current, luminous intensity, and wavelength specifications.
| Product Type | 5mm WB 6-Chip LED |
|---|---|
| Storage Temperature | -25°C - +80°C |
| Ambient Temperature | -20°C - +60°C |
| Voltage Tolerance | +10% |
| Red LED Voltage | 28V DC |
| Green LED Voltage | 28V DC |
| Yellow LED Voltage | 28V DC |
Electrical and optical data are measured at an ambient temperature of 25°C.
The voltage tolerance is +10%.
