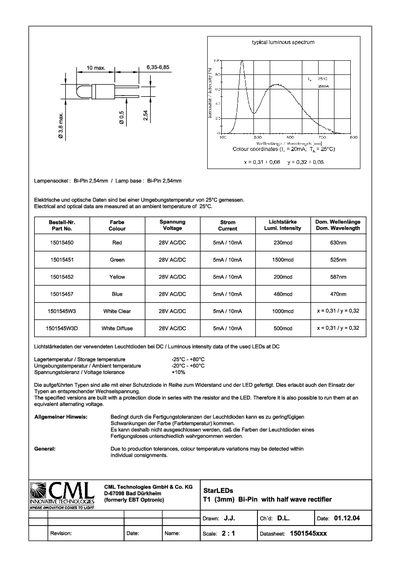

The datasheet presents the typical luminous spectrum of the LEDs and lists the electrical and optical data measured at an ambient temperature of 25 °C. It includes part numbers for red, green, yellow, blue and white LEDs, each with a 28 V AC/DC supply, 5 mA/10 mA operating current, luminous intensity and dominant wavelength.
Additional information covers storage and ambient temperature ranges, voltage tolerance, lamp base type (Bi‑Pin 2.54 mm), and construction details such as a protection diode in series with the resistor and LED, allowing operation on equivalent alternating voltage.
| Lamp base | Bi‑Pin 2.54 mm |
|---|---|
| Operating voltage | 28 V AC/DC |
| Operating current | 5 mA/10 mA |
| Storage temperature range | -25 °C to +80 °C |
| Ambient temperature range | -20 °C to +60 °C |
| Voltage tolerance | +10 % |
| Measurement temperature | 25 °C |
| Protection diode | Included in series with resistor and LED |
The LEDs use a Bi‑Pin 2.54 mm lamp base.
All electrical and optical data were measured at an ambient temperature of 25 °C.
The LEDs can be stored from –25 °C up to +80 °C.
Yes, the LEDs include a protection diode that allows them to be used with equivalent alternating voltage.
