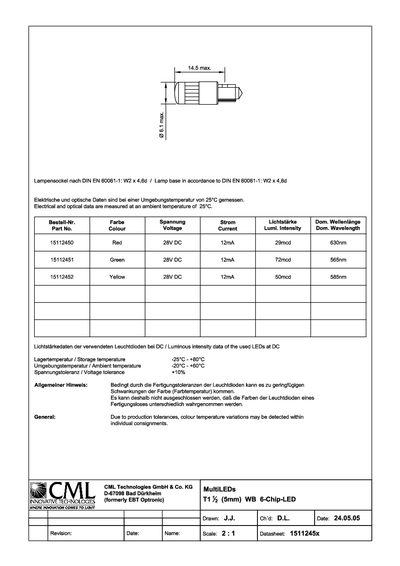

This document is a datasheet for the CML Technologies D-67098 model, which is an innovative 5mm wide-band (WB) 6-chip LED. The device is manufactured by CML Technologies GmbH & Co. KG in Bad Diirkheim and was formerly associated with EBT Optronic.
The datasheet provides specific electrical and optical data measured at an ambient temperature of 25°C. It details three available color variants (Red, Green, Yellow) with their corresponding part numbers, operating voltages, currents, luminous intensities, and wavelengths.
| Product Type | 5mm WB 6-Chip-LED |
|---|---|
| Storage Temperature | -25°C - +80°C |
| Ambient Temperature | -20°C - +60°C |
| Voltage Tolerance | +10% |
| Red LED Current | 12mA |
| Green LED Luminous Intensity | 72med |
The electrical and optical data are measured at an ambient temperature of 25°C.
The voltage tolerance is +10%.
