ILL3A0001 is a 3 watt LED module from CML company, which features a 1.74 inch (44.2mm) round compact source, can be driven up to 1000mA, and has a 50,000 hour life span and is compatible with standard and custom drivers.

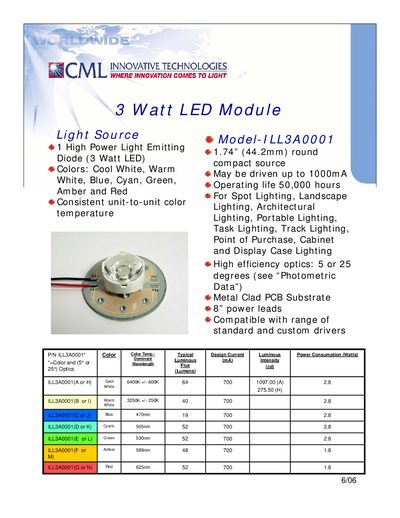

The CML ILL3A0001 is a 3 W high‑power LED module available in multiple colors (White, Blue, Cyan, Green, Amber and Red) for spot, landscape, architectural, portable, task, track, point‑of‑purchase, cabinet and display case lighting. It features a compact 1.74" (44.2 mm) round source, metal‑clad PCB, and 8" power leads, and can be driven up to 1000 mA.
The datasheet lists key specifications such as a typical design current of 64 mA, luminous flux of 700 lm, power consumption of 2.8 W, and an operating life of 50 000 h. Thermal management guidelines include a recommended PCB temperature of 65 °C, a maximum of 100 °C, and a thermal resistance of 32 °C/W. The module mounts with a #4‑40 threaded hole.
| Power rating | 3 W |
|---|---|
| Typical design current | 64 mA |
| Operating life | 50,000 h |
| Recommended PCB temperature | 65 °C |
| Maximum PCB temperature | 100 °C |
| Thermal resistance | 32 °C/W |
| Mounting hole thread | #4‑40 |
It can be driven up to 1000 mA.
The projected life is 50,000 hours with 70 % lumen maintenance at 65 °C.
White, Blue, Cyan, Green, Amber and Red.
It uses a #4‑40 threaded mounting hole.
