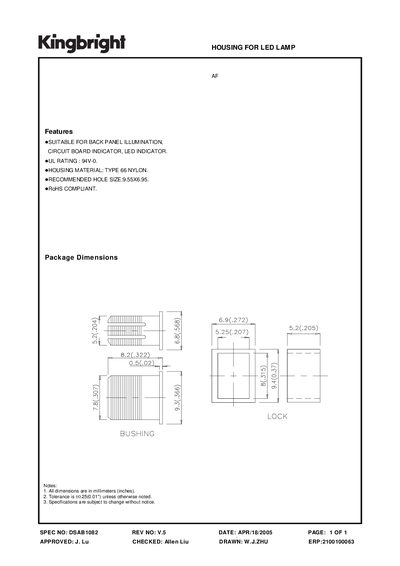

The document describes the housing dimensions and features of the LED lamp, which is suitable for back panel illumination, circuit board indicator, and LED indicator.
The Kingbright housing is designed for back‑panel illumination, circuit‑board indicators, and LED indicators. It features a UL rating of 94V‑0, is RoHS compliant, and is constructed from Type 66 nylon for durability.
Package dimensions are 6.9 mm × 5.2 mm × 5.25 mm with a recommended mounting hole size of 9.55 mm × 6.95 mm. All dimensions are given in millimetres with a tolerance of +0.25 mm unless otherwise noted. Specifications are subject to change without notice.
| UL rating | 94V-0 |
|---|---|
| Housing material | TYPE 66 NYLON |
| Recommended hole size | 9.55 mm × 6.95 mm |
| RoHS compliance | Compliant |
| Package dimensions | 6.9 mm × 5.2 mm × 5.25 mm |
The housing is UL rated 94V‑0.
It is made of Type 66 nylon.
The recommended hole size is 9.55 mm by 6.95 mm.
Yes, the housing is RoHS compliant.
