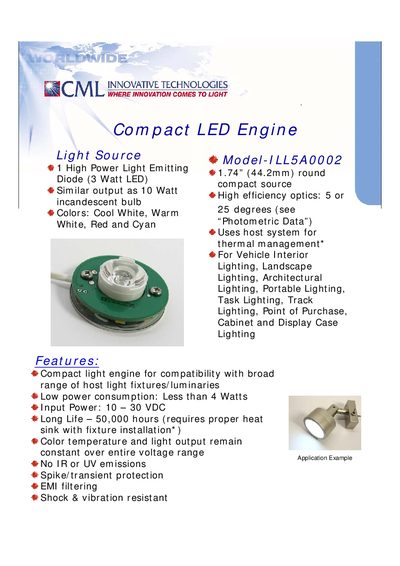

This document is an introduction to the ILL5A0002 LED Engine. This engine has high efficiency optics, low power consumption, and long life. It is suitable for various lighting scenes.
The Compact LED Engine ILL5A0002 from CML provides a versatile, high‑efficiency light source that fits a wide range of host fixtures. It operates from 10‑30 VDC, consumes less than 4 W, and offers stable color temperature and output across the voltage range. Features include shock and vibration resistance, EMI filtering, and spike protection, making it suitable for vehicle interior, landscape, architectural, and task lighting.
Technical specifications include input current options of 325 mA or 250 mA at 12 V, a typical weight of 24 g, operating temperature from –40 °C to +55 °C, and a projected life of 50,000 hours (70 % lumen maintenance). Photometric data list lux values for various beam angles, and color options cover Cool White (5500 K), Warm White (3300 K), Red (625 nm) and Cyan (505 nm).
| Input Power | 10 — 30 VDC |
|---|---|
| Input Current (Model ILL5A0002B) | 325 mA @ 12 V |
| Operating Temperature | -40 °C to +55 °C |
| Projected Life | 50,000 hours (70 % lumen maintenance) |
| Low Thermal Resistance | 32 °C/W |
| Power Consumption | Less than 4 W |
| Color Temperature | Cool White 5500 K, Warm White 3300 K |
| Light Output (5° Cool White) | 269 Lux |
It operates from 10 to 30 VDC.
The projected life is 50,000 hours with 70 % lumen maintenance.
