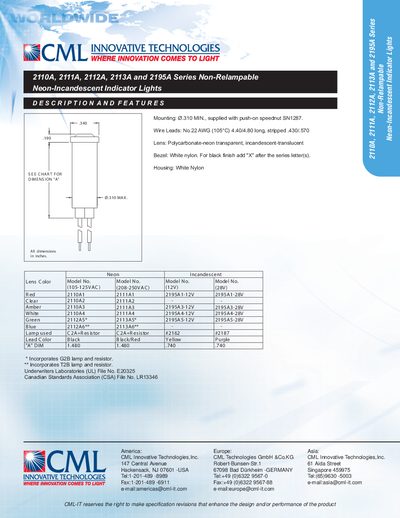

2110A, 2111A, 2112A, 2113A and 2195A Series Non-Relampable Neon-Incandescent Indicator Lights with mounting, wire leads, lens, bezel, housing, UL and CSA file numbers.
The 2110A, 2111A, 2112A, 2113A and 2195A series are non‑relampable neon‑incandescent indicator lights offered in multiple colors and voltage options. The series features a white nylon housing, polycarbonate‑transparent lens, and standard wire leads.
Key specifications include a white nylon bezel (black finish available by adding "X" after the series letter), mounting size of 2.310 MIN with a push‑on speednut, and UL and CSA certifications. Contact information for CML offices in the USA, Germany and Singapore is provided for further support.
| Housing material | White Nylon |
|---|---|
| Mounting size | 2.310 MIN., supplied with push‑on speednut SN1287 |
| Lens material | Polycarbonate‑transparent, incandescent‑translucent |
| Wire leads | No.22 AWG (105°C) 4.40/4.80 long, stripped .430/.570 |
| Bezel color | White nylon (black finish by adding "X") |
| UL certification | File No. E20325 |
| CSA certification | File No. LR13346 |
The housing is made of white nylon.
Add "X" after the series letter(s) to get a black finish bezel.
The series is certified by UL (File No. E20325) and CSA (File No. LR13346).
The wire leads are No.22 AWG (105 °C), 4.40/4.80 long, stripped .430/.570.
